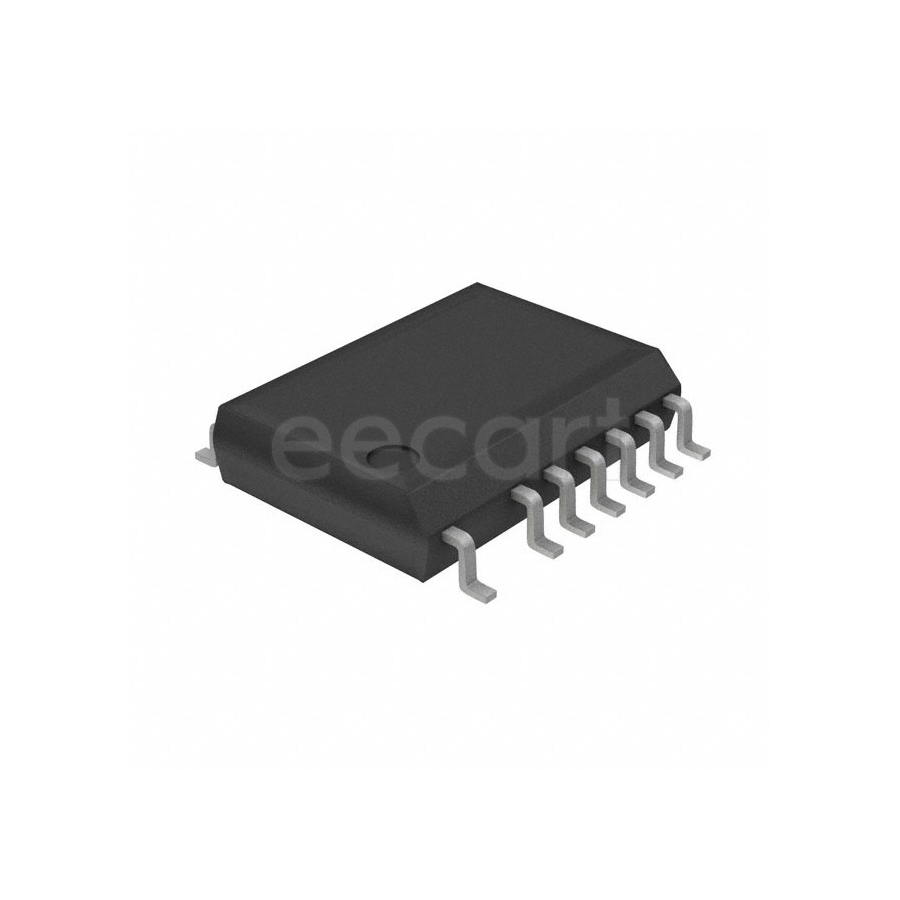

MC33363ADWG
Manufacturer:
On Semiconductor
Mfr.Part #:
MC33363ADWG
Datasheet:
Description:
AC to DC Converters SOIC-16 SMD/SMT 6.5 V 8 W Flyback 50 %
| Parameter | Value |
|---|---|
| Length | 10.45 mm |
| Width | 7.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 13 |
| Height | 2.4 mm |
| Packaging | Reel |
| Halogen Free | Halogen Free |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 547.485991 mg |
| Current Rating | 1.5 A |
| Min Input Voltage | -1 V |
| Output Current | 1.5 A |
| Output Voltage | 6.5 V |
| Output Type | Adjustable, Fixed |
| Lifecycle Status | Obsolete (Last Updated: 5 months ago) |
| Max Supply Voltage | 40 V |
| Min Supply Voltage | 20 V |
| Breakdown Voltage | 700 V |
| Operating Supply Current | 3.4 mA |
| Topology | Flyback |
| Switching Frequency | 310 kHz |
| Max Input Voltage | 7.5 V |
| Number of Outputs | 1 |
| Output Power | 8 W |
| Efficiency | 76.8 % |
| Nominal Input Voltage | 40 V |
| Max Duty Cycle | 52 % |
| Max Input Voltage (AC) | 276 V |
| Min Input Voltage (AC) | 92 V |
| Manufacturer Lifecycle Status | OBSOLETE (Last Updated: 5 months ago) |
| Duty Cycle | 50 % |
| Isolation | Isolated |
